A home lift should solve a mobility problem—not create an architectural one.

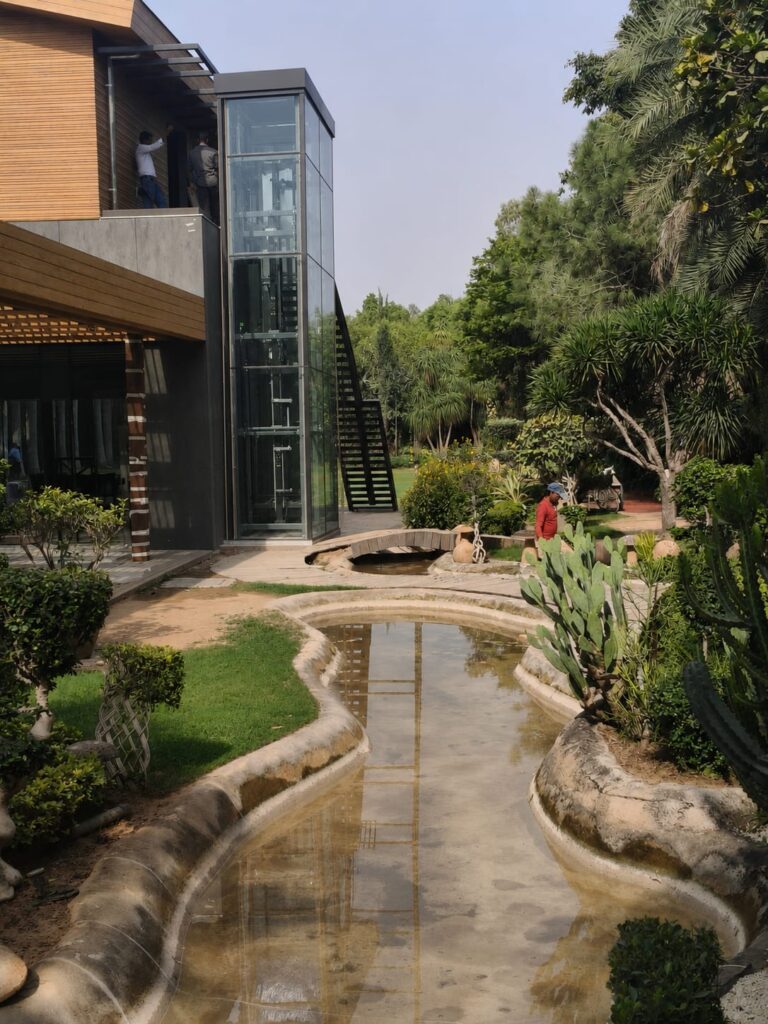

There is something interesting about the glass home elevator in this photograph.It is impossible to miss.And yet, somehow, it does not demand attention.The house already had its own architectural language: timber, concrete and glass; established floor levels; mature landscaping; and a natural pattern of movement through its spaces.Then came another requirement: vertical mobility.Adding a home lift to an existing house is very different from planning one in a new building.

The architecture is already complete. The roofline, entrances, staircase, garden and circulation areas are all established.The questions therefore become more complicated.Where should the home lift be installed? How much civil work will be required? Can it be positioned outside the house? What happens to the façade? How deep must the pit be? And when everything is complete, will the elevator belong to the architecture—or look like an unavoidable addition?Perhaps the question needs to be reversed.Instead of asking how much the house must change to accommodate an elevator, we should ask:How intelligently can the elevator adapt to the house?

The Short Answer

Yes, a home lift can be installed in many existing houses, villas and duplex homes.The right solution depends on the available space, structural conditions, number of floors, entrance arrangement, pit and overhead availability, intended capacity and the extent of civil work the homeowner is comfortable undertaking.Compact equipment, low-pit configurations and glazed hoistway options can make it possible to introduce vertical mobility without fundamentally redesigning the home.The process, however, should always begin with a professional site assessment—not with the selection of cabin finishes.

Customisation Begins With the Available Space

When people hear the words customised home lift, the conversation often moves quickly towards appearance.Which stainless steel?Which flooring?Which doors?Which control panel?These decisions matter. They influence how the elevator feels and how comfortably it sits within the interiors of a home.But the more important form of customisation begins before any of them.It begins with space.In a new building, the architect may reserve the shaft, pit and overhead requirements while the structure is still being planned. In an existing house, those boundaries have already been established.The challenge is no longer to design a building around an elevator.It is to introduce mobility into somebody’s existing architecture.

That requires looking carefully at:the dimensions available at every floor; possible internal and external locations; the direction of entry and exit; the relationship with the staircase and circulation areas; pit and overhead availability; structural and civil requirements; weather protection for an external installation; access for maintenance; and the way the new lift will relate visually to the house.

This is where compact engineering and flexible installation become especially important. The V300’s control architecture can support different installation arrangements within or outside the hoistway, allowing the available building space to be used more intelligently. The elevator is therefore considered around the home—not the home around the elevator.

Why a Low-Pit Home Lift Matters in an Existing House

Technical dimensions may not sound like the most emotional part of a home. Yet a few millimetres on an engineering drawing can determine whether a proposed home lift installation is practical at all. In an applicable V300-GD configuration, a pit depth of 250 mm  can reduce the extent of excavation required. With a car height of 2100 mm, the corresponding overhead requirement is 3050 mm.On paper, these are measurements. On site, they become possibilities. A low-pit home lift can be valuable where extensive excavation is undesirable, where foundations or underground services create constraints, or where the owners want to minimise disturbance to an already finished property. Overhead dimensions matter for the same reason. In an existing house, the uppermost floor and roofline cannot always be raised simply to accommodate conventional elevator requirements. Final pit, overhead and shaft dimensions will depend on the selected configuration and the conditions identified during the site assessment. This is why choosing a residential elevator cannot begin and end with capacity, speed or cabin size.The architecture is not merely the setting for the elevator. It is part of the specification.

Where Can a Home Lift Be Installed?

Depending on the building and the results of a technical assessment, possible locations may include: an available space beside the staircase;a sufficiently sized stairwell void;an internal courtyard;an unused corner connecting multiple floors;an area adjoining a lobby or passage; or an external position alongside the building façade.

There is no universally correct location. An internal home lift may provide direct access from within the house, but the available floor area and structural implications must be studied carefully. An external home lift may reduce disruption to finished interiors, but its shaft, entrances, weather protection and visual relationship with the façade require equally careful planning. The best position is not simply the one where the equipment fits. It is the position that provides convenient movement while requiring the least unreasonable compromise from the building and the people using it.

How a Glass Home Elevator Preserves Visual Continuity

Look again at the installation in the photograph. Had this new vertical structure been visually solid, its effect on the house and garden would have been entirely different. Instead, the glazed structure preserves a degree of visual continuity between the building and its surroundings. You see the elevator. But you also see through it. That distinction matters. Glass does not make a home lift disappear, nor should it attempt to. What it can do is reduce visual interruption, allow natural light to move through the structure and help the original architecture remain present. For an external home lift, the choice of shaft material has a considerable influence on how substantial the new vertical element feels against the existing façade. A glass home elevator with an aluminium-profile hoistway can become a considered architectural intervention rather than a structure positioned wherever space happened to be available. The purpose is not to turn the elevator into a spectacle. It is to help it find the right visual relationship with the home.

Quiet Engineering Matters Inside a Home

A photograph naturally draws attention to the glass, proportions, landscaping and architecture. The passenger experiences something else. They experience how the elevator begins moving, how it comes to a stop, the sound it makes inside a quiet residence and the confidence with which it can be used independently. The V300 is engineered with optimised acceleration and deceleration curves for smoother travel. Its XCR2000 control system is specified at an operating sound level below 40 decibels, helping the system remain unobtrusive in a residential environment. Quiet operation is particularly relevant when a home lift is positioned close to bedrooms, living areas, passages or other frequently occupied spaces. Good residential engineering should not continuously announce its presence. It should work comfortably within everyday family life.

What Happens During a Power Interruption?

Power continuity and rescue arrangements should form part of any serious home-elevator discussion. The V300 uses a battery-drive architecture integrating the controller, traction machine, door drive and car interface. Battery-supported operation can assist movement when the normal electricity supply is unavailable. Intelligent and manual rescue provisions provide additional support, while energy can also be recovered within the system during operation. These are not the features that make an architectural photograph beautiful. They are what allow a visually considered installation to function as a dependable elevator. Perhaps that is how good engineering should work: present when it is needed, quiet when it is not, and largely unnoticed during normal use.

The Best Home-Lift Installation May Be the One That Changes the Least

There is a temptation in engineering to celebrate complexity. Residential mobility often demands the opposite. A homeowner may not want an elevator to become the defining feature of the property. The immediate need may simply be to help parents move comfortably between floors. The family may be planning for its own future accessibility. A resident may be recovering from illness or injury. Or the owners may want every member of the family to use every level of the home with greater independence. The real engineering question is therefore not simply:Can an elevator be installed here?It is:Can vertical mobility be introduced while respecting what is already here?Answering that question requires more than selecting a product. It requires understanding the home, the people who use it and the physical constraints that make each project different. This is where product selection becomes solution engineering.

What Should Be Checked Before Installing a Home Lift?

Before selecting a home elevator for an existing house, the site assessment should consider : the number of floors and required travel;intended users and accessibility requirements;available shaft or installation space;pit and overhead dimensions;cabin capacity and door arrangement;internal versus external placement;civil and structural requirements;electrical supply and power-failure provisions;drainage and weather protection where relevant;emergency and rescue arrangements;maintenance access;applicable local approvals and technical requirements; and the availability of reliable installation and after-sales support.

A technically suitable elevator still needs to be positioned, installed and supported correctly.The quality of the final result depends on the relationship between the equipment, the building and the team responsible for bringing them together.

Frequently Asked Questions About Home LiftsCan a home lift be installed in an existing house?

Yes. Many existing houses, villas and duplex homes can accommodate a residential elevator. Feasibility depends on the available space, building structure, pit and overhead conditions, entrance requirements and suitable internal or external positioning. A technical site assessment should be completed before finalising the equipment.

Does a home lift always require a deep pit?

Not necessarily. Pit requirements vary according to elevator technology and configuration. In an applicable V300-GD configuration, the pit depth can be as low as 250 mm. The final requirement must be confirmed for the selected configuration and actual site conditions.

Can a home lift be installed outside the building?

An external home lift may be possible where there is suitable space alongside the façade and access can be created at the required floors. The supporting structure, weather protection, drainage, landing entrances and architectural integration must all be carefully planned.

Is a glass home elevator suitable for an existing house?

A glass home elevator can be particularly effective where the owners want to maintain natural light and reduce the visual weight of a new shaft. Its suitability depends on the installation location, structural arrangement, environmental exposure and project requirements.

Are home lifts only intended for elderly users?

No. Home lifts can support older family members, people with temporary or permanent mobility limitations, wheelchair users and anyone who finds regular stair use difficult. They can also make the movement of luggage, household items and everyday essentials between floors more convenient.

What is the first step in planning a home-lift installation?

The first step should be a site assessment. This allows the available dimensions, building conditions, travel requirements, entrance positions and civil implications to be understood before a model or configuration is recommended.

Start With the Constraint

Some of the most interesting home-lift projects do not begin with a model number.They begin with a difficult corner.A completed house.An inconvenient change of level.A garden nobody wants disturbed.A roofline that cannot simply be raised.Or a family whose mobility requirements have changed while the home itself has remained the same.Those constraints should not necessarily end the conversation.They should start it.The V300 forms part of Gilco Global’s collaboration with SJEC Corporation for mobility solutions in India, bringing together established elevator engineering and manufacturing capabilities with local site planning, installation and support.But the photograph tells the story more simply than any corporate description could.There was a house.There was a need to move vertically.And there was architecture worth respecting.The building did not have to surrender to the elevator.The elevator found its place within the building.

Planning a Home Lift for an Existing House?

Gilco Global can assess the available space, installation possibilities and mobility requirements before recommending a suitable solution.A site-led approach helps identify where the elevator can be positioned, how much civil intervention may be involved and which configuration can work most effectively with the existing architecture.Gilco Global Engineering mobility around the way people live.
